W STANDARD SPECIFICATIONS
| Model | Hose Joint | Rated Power (W) |
Specified Maximum Power (W) |
Dimensions (mm) | Resistance Value Range (Ω) |
|
| A | B | |||||
| W-500DN | SUS | 350 | 500 | 142 | 180 | 1- 100 |
| W-1000DN | SUS | 750 | 1000 | 142 | 166 | 1- 100 |
| W-1600DN | SUS | 1200 | 1600 | 247 | 271 | 1- 100 |
W STANDARD SPECIFICATIONS

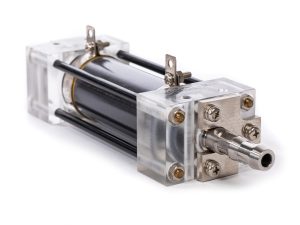

- A 1/2″ diameter SUS hose is used as standard to attach to the direct water-cooled resistors. Upon request, we can offer other hose joint.
- Use pure water with a resistivity of 1 MΩ⋅cm or higher (an electrical conductivity of 1 µS/cm or lower) as the cooling water.
- Keep the water pressure at 0.59 MPa or lower.
- Use 4-mm-diameter bolts to attach these resistors. Tighten the bolts at about 0.5 N⋅m.
- Use a worm gear hose clamp, and tighten it at 1 to 1.5 N⋅m.
- Allow water to flow at a rate of at least 5 ℓ/min. Do not interrupt the flow. We recommend installing a safety circuit.
- Mount the resistor vertically, and allow water to flow from the bottom to the top. (The same applies to the simultaneous use of several resistors.)
- Keep the surge voltage at 1800 V or lower (250 V/cm for the effective length of the resistor).
